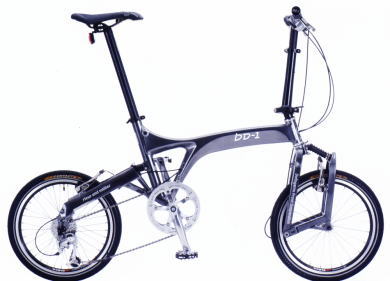

2009 BD-1 9speed：折畳自転車
この自転車のタイプ：折畳自転車※車種の説明
2006年より継続のアルミモノコックで形成された全くの3Ｄフレームは、タイヤ径を変えずに従来のＢＤ−1より低重心を実現。
定価：192,150円（税込）
当店価格：153,720円（税込,送料別）
当店価格：153,720円（税込,送料別）
商品データ
| Frame | Alu foldingMonocoque frame, w/black elastomer suspension, rear dropout 135mm, special droput |
|---|---|
| Fork | Alu folding fork with black spring suspension w/side carrier eye-let |
| Head Sets | 1-1/8" w/alloy top cap and 22.2mm star nut+2mm spacer |
| BB Parts | 68-122mm |
| Seat Post | 34.9x2.3tx570mm hard anodized AL7075 w/laser scale |
| Seat Clamp | ID:40mm |
| Tire/F | Contact 18 1.5 58psi 4/240 TPI wire reflex |
| Tire/R | Contact 18 1.5 58psi 4/240 TPI wire reflex |
| Tube | 18x1.5" FV |
| Rim tape | Nylon Strip rim tape |
| Rim/F | 18x1.5" 24H w/CNC side wall |
| Rim/R | 18x1.5" 36H w/CNC side wall |
| Spoke | 2.0mm 14G stainless,silver |
| Hub/F | 24H old : 100mm silver, sealed bearing, alloy axle, QR-38 black A : 109mm |
| Hub/R | FH-F700 9 speed QR type 36H OLD : 135mm QR : 168mm |
| Chainwheel | Alloy 6061 3t CNC 47T chainring SB silver, w/alloy 170mm crank set Polished silver, w/double alloy chain cover ;olished silver, w/o Andel logo |
| Chain cover | - |
| Chain | 108L super narrow chain for 9speed |
| Freewheel | Cassette sprocket 9speed |
| Derailleur/R | RD-F700-SGS 9speed direct attachment |
| Shifter/R | SL-F700 right 9speed 2050mm inne |
| Shifter Cables | Outer casing OT-41SP sealed 1200mm/580mm, 6X6mm cap |
| Saddle | VEM99 black w/o stitching, black bumper steel black w/scale rails, w/o clamp, w/2009 bd-1 logo white |
| Pedal | Barrel polished alloy body, ED black alloy cage, CNC machined Cro-mo axle |
| Handlebar | 520mm |
| Stem | Folding adjustable index stem w/new hinge. 25degree |
| Grip | PP Filber black, Kraton black/Gel gray (P432C) 130mm, w/laser BD-1 logo |
| Brake/F | V-Brake BR-M530-S, Deore Y-type (thin spacer : inside) W/S70C shoe(STD), 16.0mm fixing bolts, we/Tektro #875.1 lead pipe |
| Brake/R | V-Brake BR-530S, Deole Y-type (thin spacer : inside) W/S70C shoe(STD), 16.0mm fixing bolts, e/90degree lead pipe |
| Blake Lever/R | Brake lever BL-M511-S, Deole right for V-brake,M530 color&logo |
| Blake Lever/L | Brake lever BL-M511-S, Deole left for V-brake,M530 color&logo |
| Brake Cables | Brake cable Shimano T-type DIA : 1.6X5.0mm, stainless inner wire 1400x1600mm |
| Ref.&Bracket | Rear reflector RR 160-BTR w/B10 bracket |
| Light/F | White LED light, 3 white LEDS, double functions, w/25.4 bracket on handlebar, w/o battery |
| Light/R | All sight rear safety light, 3LEDs, 4Modes, w/o battery |
| Bell | Alloy dome with one piece plastic base 22.2mm, |
| Weight | 10.8kg |
上記商品につきましては、予告なく仕様や価格を変更する場合がございます。また、表示のウエイトは、おおよその値であり、実物とは異なる場合がございます。
